High Density Connection Enhances PXIe Test & Measurement

PX Size 12 Cable Guide Plates

The PX12 Cable Guide Plates attach easily to the back of the connector and manage the RF cables by extending cable registration and isolating the RF contacts from the cable radius without damage or deformation. Cable Guide Plates are available for RG‑179 and SS75086 cables in 13, 23, and 48-pin configurations for size-12 RF contacts.

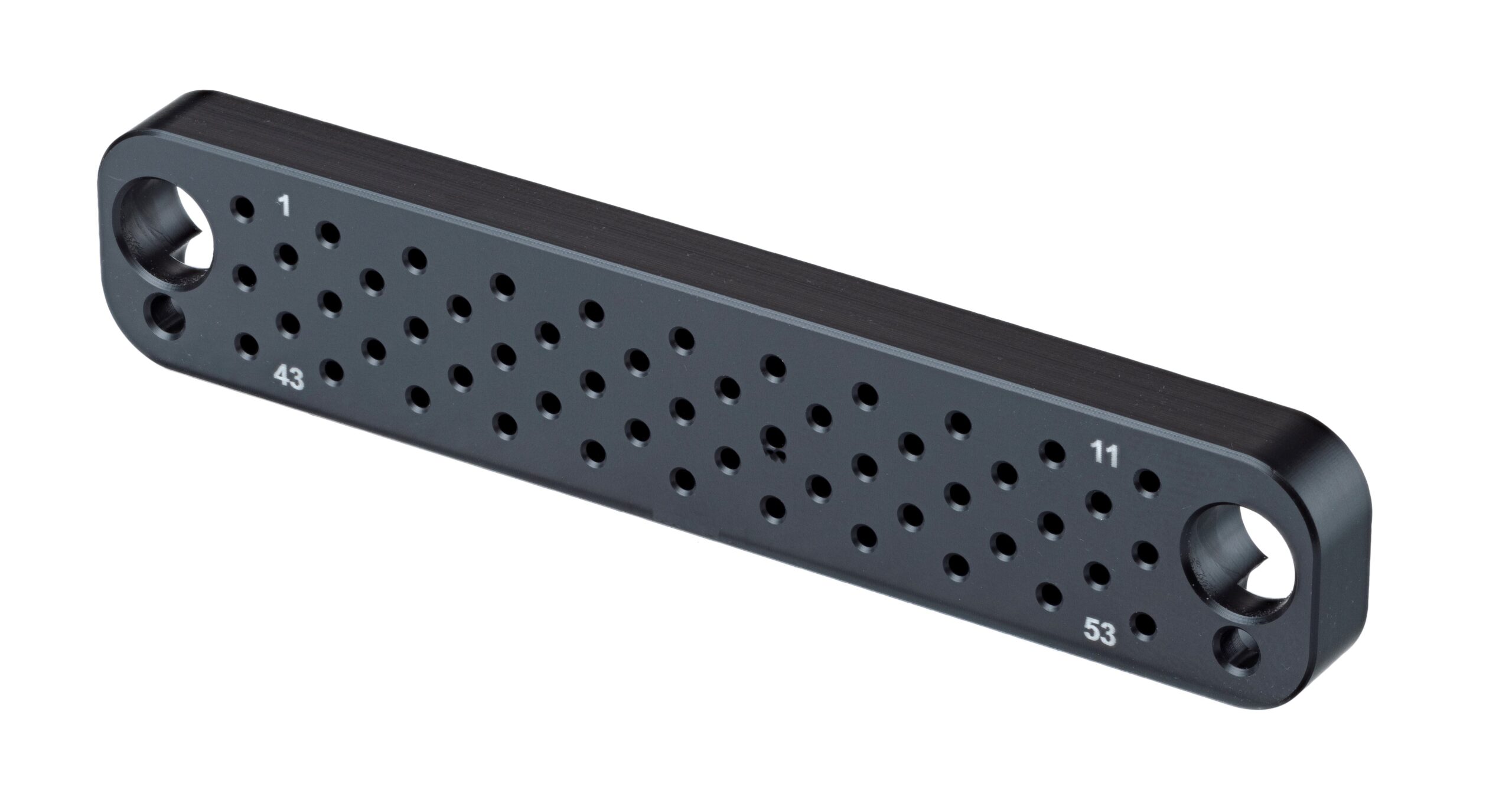

PX12FGPK01

48 Position, PX12 Plug Cable Guide Plate Kit for RG‑179 and SS75086 Cables
For Size-12 Contacts

LEARN MORE

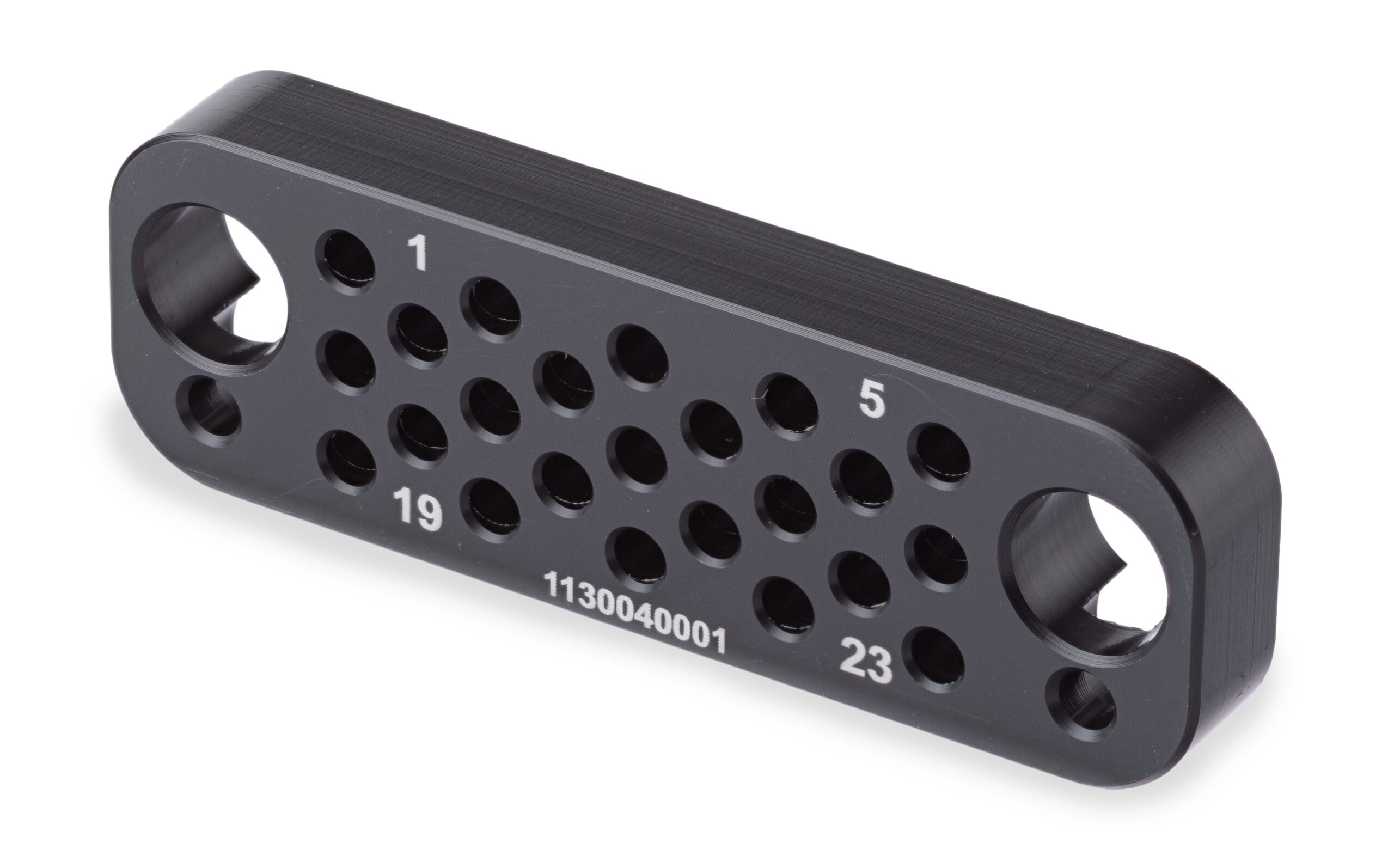

PX12HGPK01

23 Position, PX12 Plug Cable Guide Plate Kit for RG‑179 and SS75086 Cables
For Size-12 Contacts

LEARN MORE

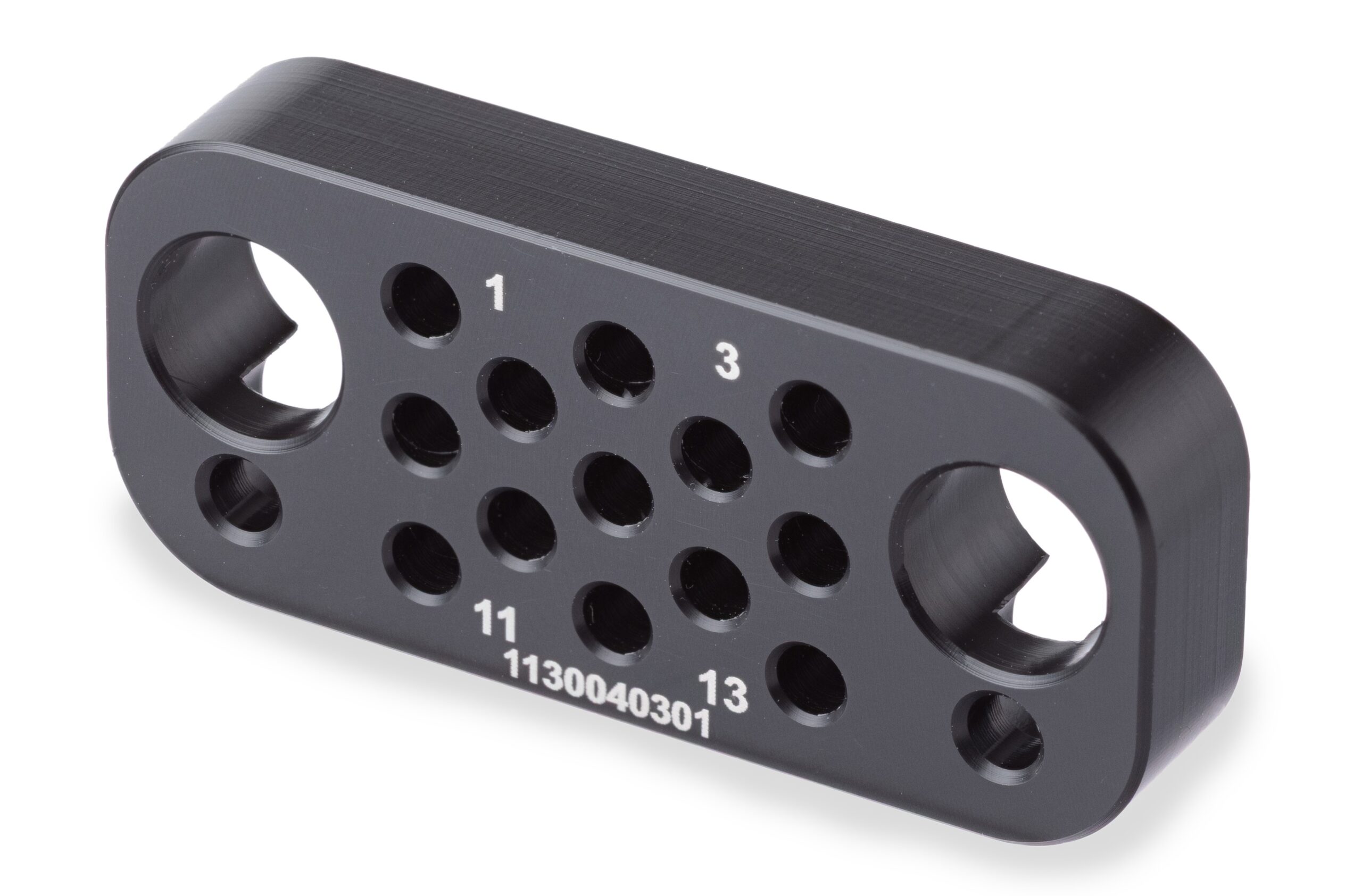

PX12QGPK01

13 Position, PX12 Plug Cable Guide Plate Kit for RG‑179 and SS75086 Cables
For Size-12 Contacts

LEARN MORE
