65 Series Size 5 PkZ® ARINC RF Contacts: High-Frequency Connectivity for Aerospace Applications
Size 5 RF contacts are specialized coaxial contacts designed for use in ARINC 404/600 connectors, enabling high-frequency signal transmission in aerospace environments. These contacts are critical for systems requiring robust RF performance, such as radar, satellite communication, and advanced avionics. Unlike standard power contacts, these RF contacts are required to maintain impedance control and minimize signal loss at high frequencies. At present, the industry-standard design of Size 5 contacts limits its performance capabilities to 3 GHz maximum. The Phoenix Company of Chicago, Inc. developed a new series of Size 5 PkZ contacts with improved performance, especially at a high frequency range.
65 Series Size 5 PkZ Contacts are designed to operate over a frequency range of DC to 18 GHz maintaining 50 Ohm impedance response. These contacts are designed to fit in ARINC 404 and ARINC 600 connector housings and offer a mating tolerance of .110”, maintaining a constant impedance response. These 65 Series Size 5 PkZ contacts can operate over a temperature range of -55 ºC to +200 ºC making them suitable for aerospace applications and are designed for a wide variety of cables, especially for aerospace and avionics applications providing high and reliable performance.

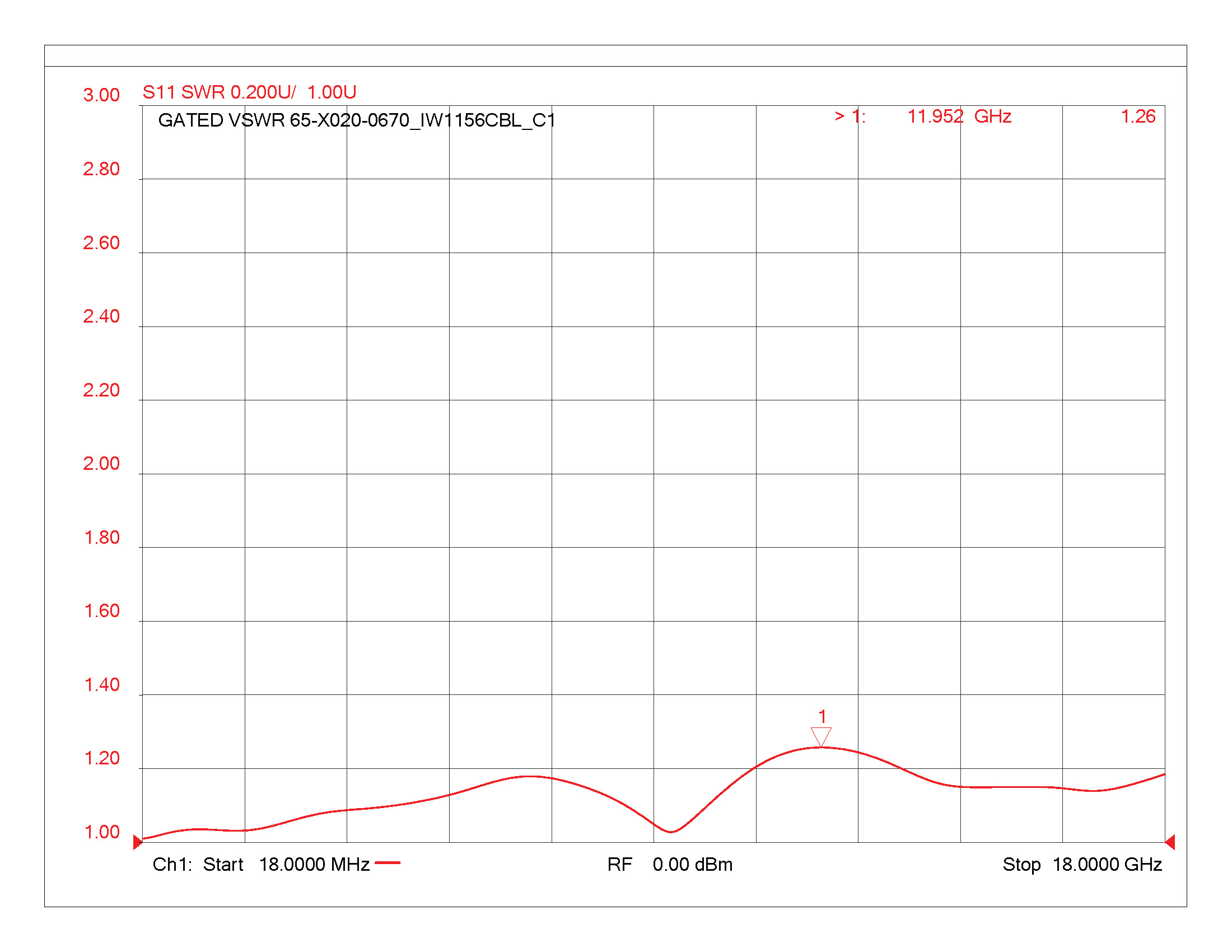

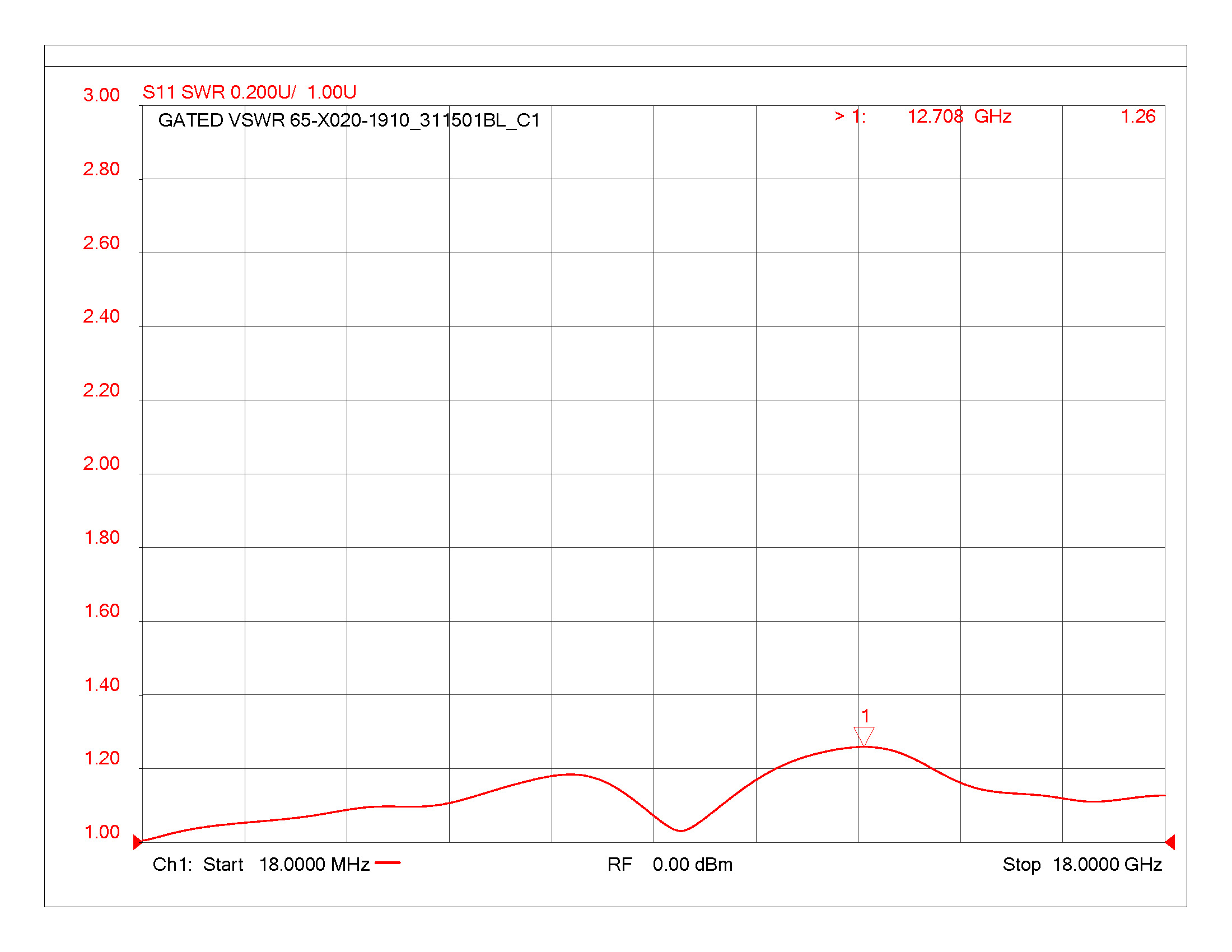

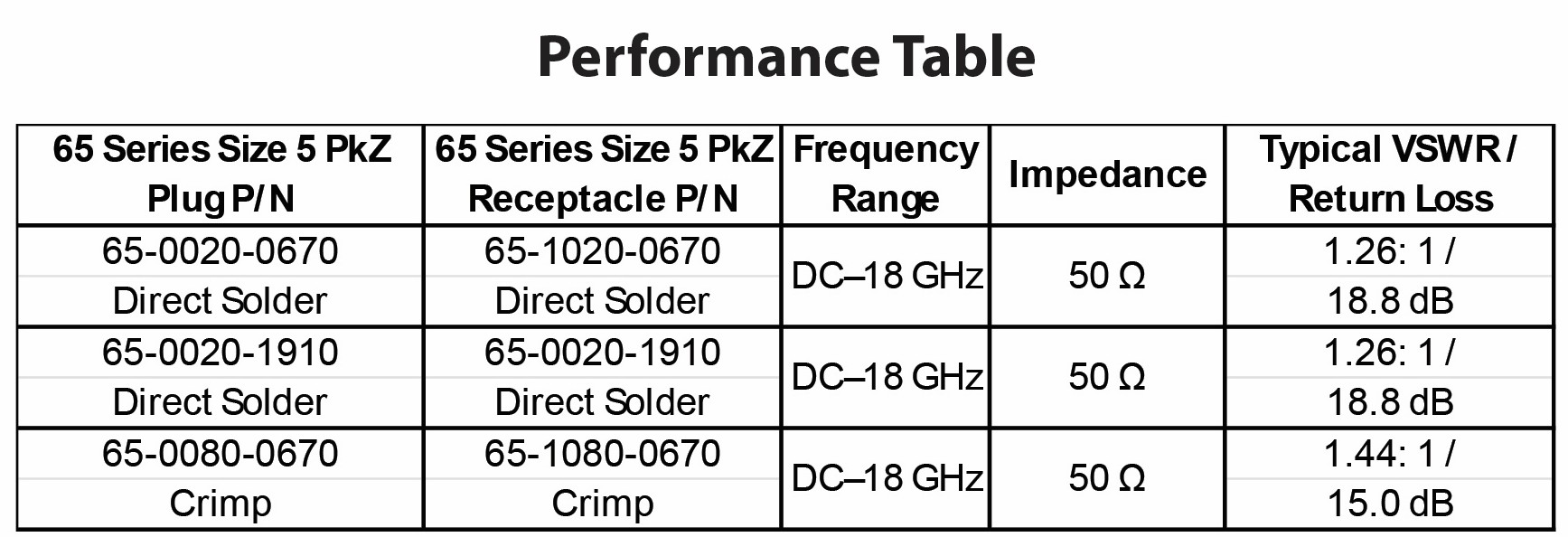

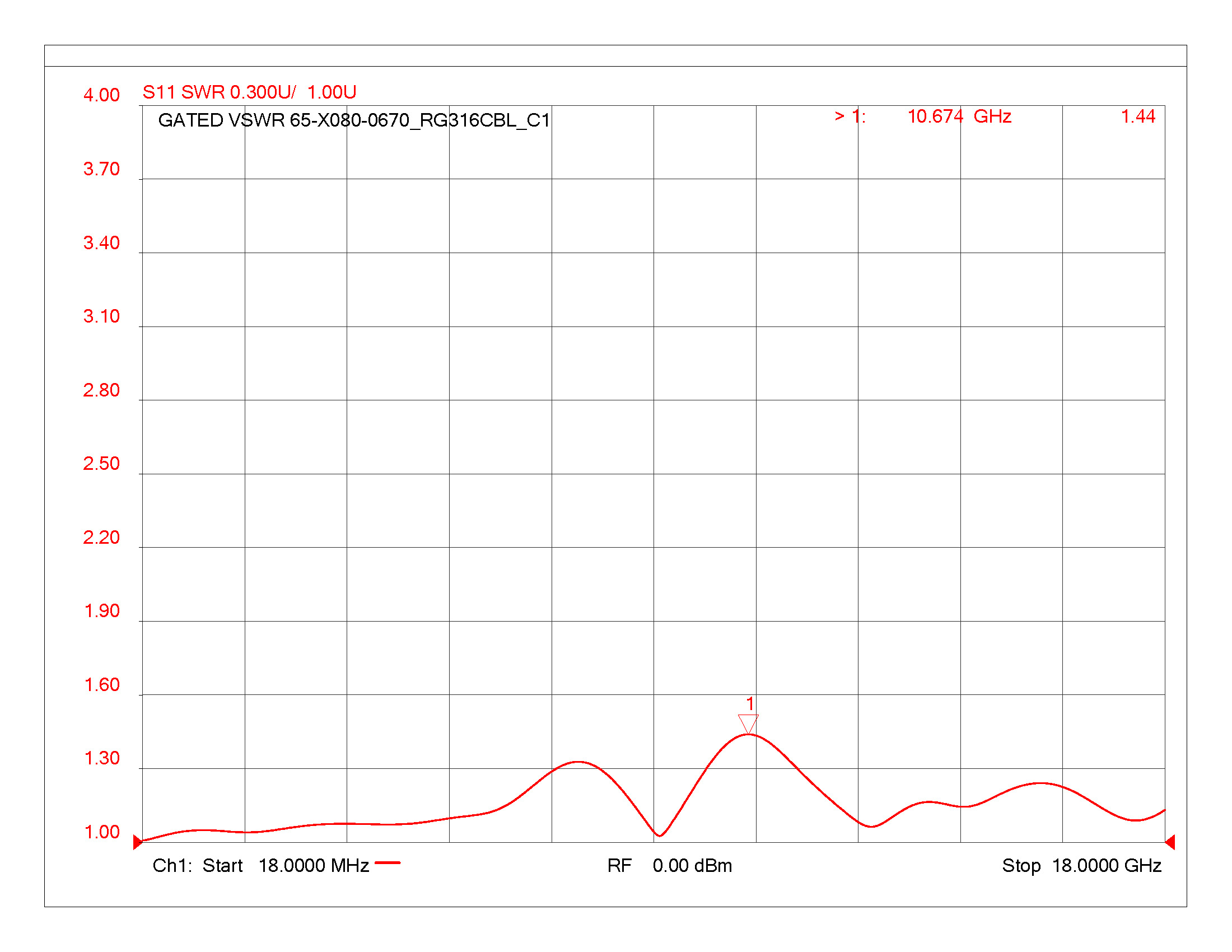

Examples of 65 Series Size 5 PkZ designs with their part numbers and typical VSWR (loss) performance are listed below:

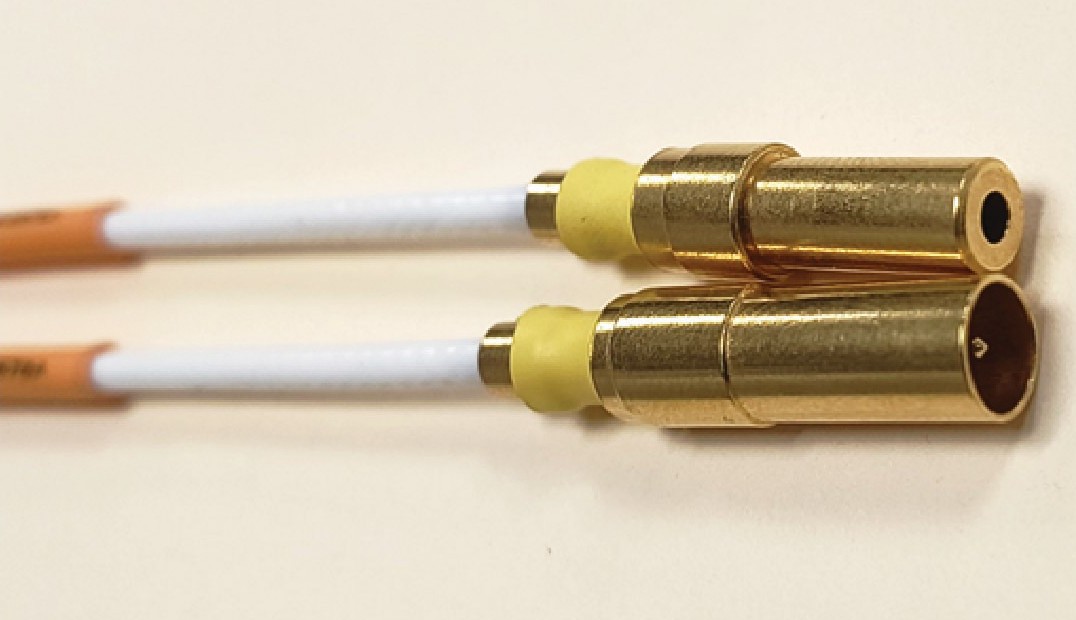

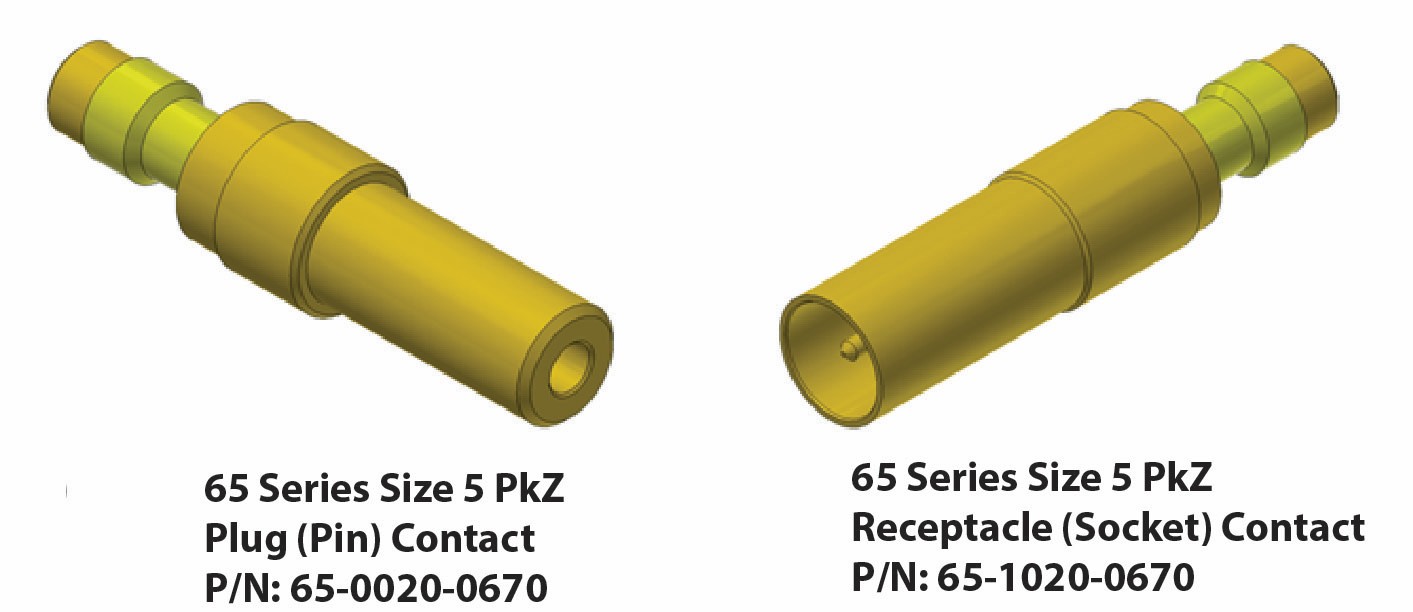

- 65-0020-0670: Size 5 ARINC 404 and ARINC 600 Plug PkZ Contact (Pin), for RG316, Harbour SB316, IW1156, & Flex405 Cables, Direct Solder Termination, operating up to 18 GHz frequency.
- 65-1020-0670: Size 5 ARINC 404 and ARINC 600 Receptacle PkZ Contact (Socket), for RG316, Harbour SB316, IW1156, & Flex405 Cables, Direct Solder Termination, operating up to 18 GHz frequency.

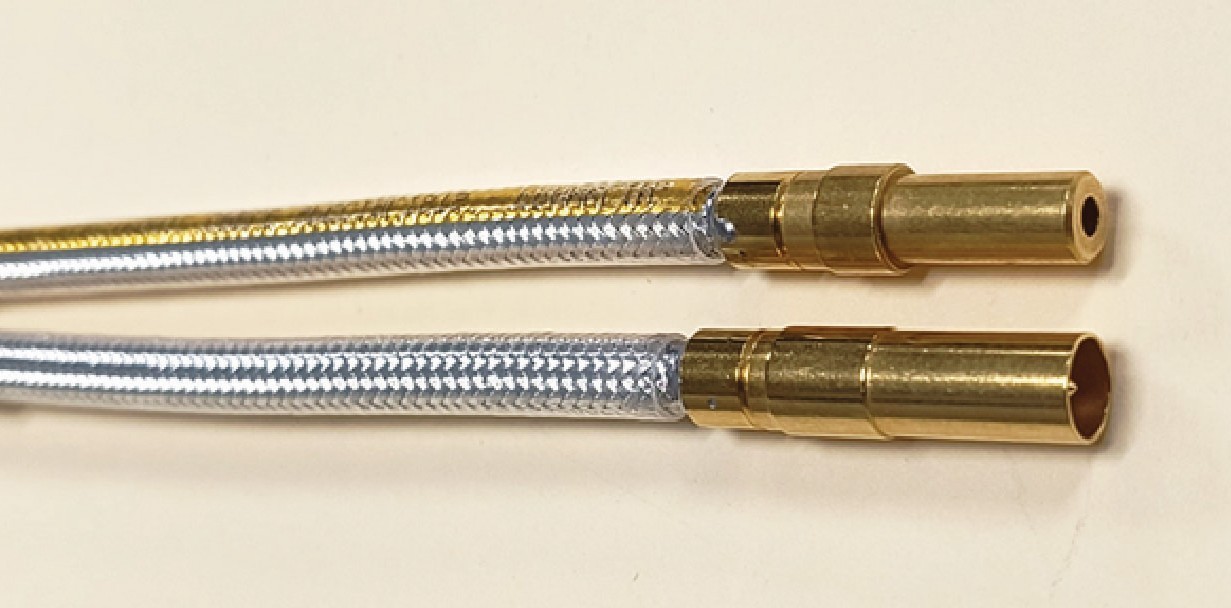

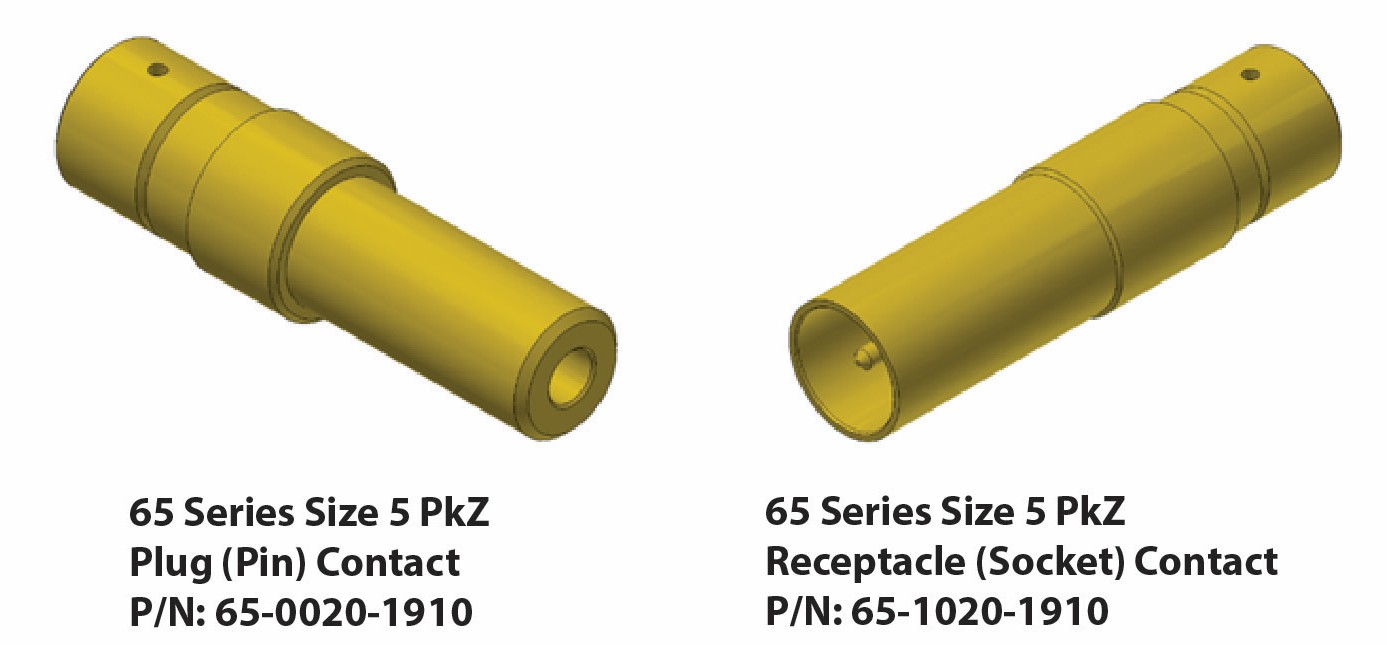

- 65-0020-1910: Size 5 ARINC 404 and ARINC 600 Plug PkZ Contact (Pin), for Harbour LL235 & ECS Avionics RF Cable P/N 311501 Cables, Direct Solder Termination, operating up to 18 GHz frequency.
- 65-1020-1910: Size 5 ARINC 404 and ARINC 600 Receptacle PkZ Contact (Socket), for Harbour LL235 & ECS Avionics RF Cable P/N 311501 Cables, Direct Solder Termination, operating up to 18 GHz frequency.

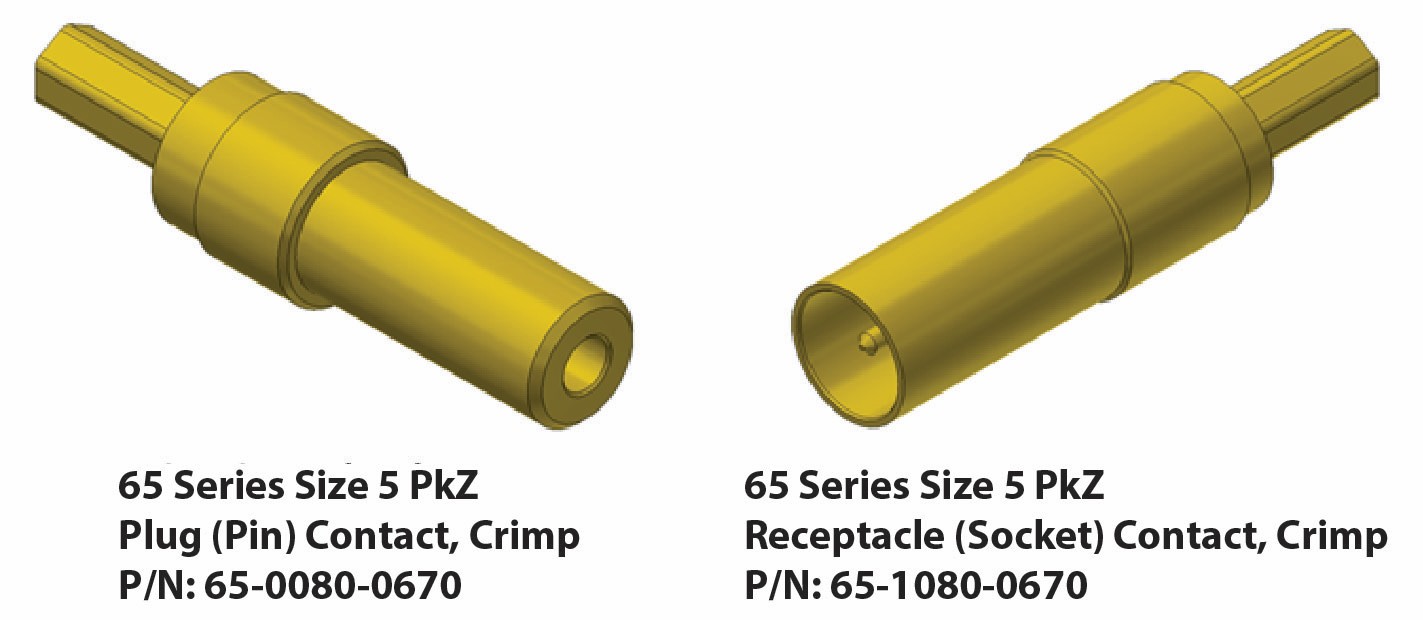

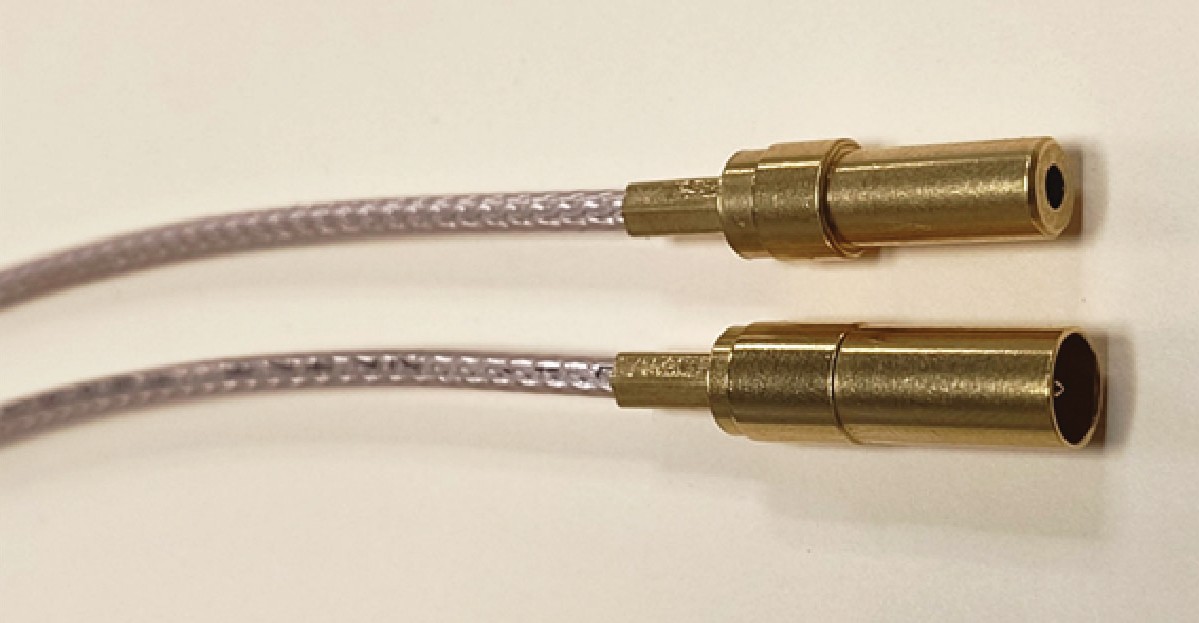

- 65-0080-0670: Size 5 ARINC 404 and ARINC 600 Plug PkZ Contact (Pin), for RG316, RG174 & RG188 Cables, Crimp Termination, operating up to 18 GHz frequency.
- 65-1080-0670: Size 5 ARINC 404 and ARINC 600 Receptacle PkZ Contact (Socket), for RG316, RG174 & RG188 Cables, Crimp Termination, operating up to 18 GHz frequency.
Key Features and Specifications
- Frequency Range: DC to 18 GHz (typical).
- Impedance: 50 Ω standard for aerospace RF applications.
- Insertion Loss: Extremely low for optimal signal integrity.
- Material: Precision-machined bodies with gold-plated interfaces for corrosion resistance and conductivity.
- Cable Compatibility: Semi-rigid or flexible coaxial cables (e.g., RG‑316, RG‑405).
- Compliance: Meets ARINC 404 and ARINC 600 standards for RF performance.
Applications in Aerospace
- Radar Systems: Reliable high-frequency signal transmission for navigation and defense.
- Satellite Communication: Supports high-bandwidth data links for in-flight connectivity.
- Avionics RF Modules: Used in systems requiring low-loss RF interconnects.
Advantages of 65 Series Size 5 PkZ ARINC RF Contacts
- High Signal Integrity: Maintains constant impedance and minimizes VSWR (Voltage Standing Wave Ratio).
- Durability: Resistant to vibration and thermal cycling common in aerospace environments.
- Modular Integration: Fits ARINC 404 and ARINC 600 connector housings for streamlined system design.
- Ease of Maintenance: Standardized assembly procedures simplify servicing.
