Attributes
| Size | 8 |
|---|---|
| Housing | ARINC 600 |
| Impedance | 50 Ohm |
| Max Frequency | 1 GHz, 3 GHz |
| Gender | Plug |
| Configuration | Straight |
| Mounting | Cable |
| Termination | Crimp/Clamp |
| Cable Type | RG-58, RG-141, RG-303 |
| Product Series | 68 Series |
| Product Type | PkZ Contact |

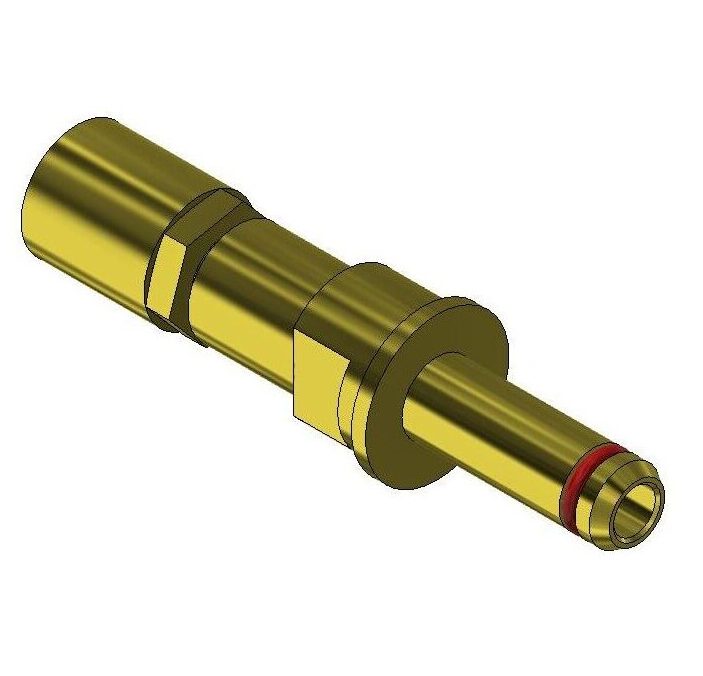

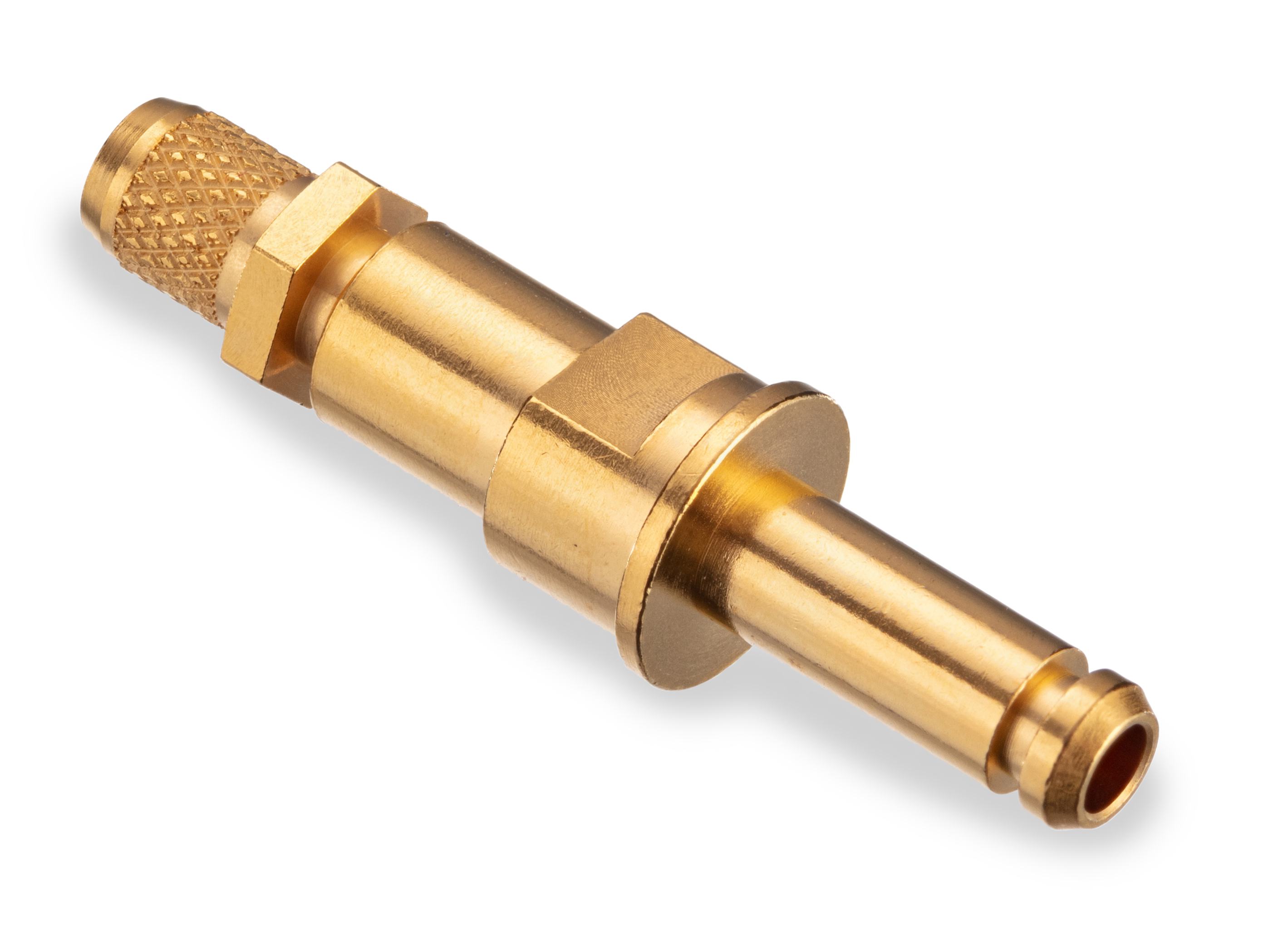

PkZ Contact
50 Ohm, Size 8, PkZ for ARINC 600 Housings
Straight Plug Contact, Crimp/Clamp Termination
Max Frequency Rating: 1 GHz
RG-58, RG-141, or RG-303 Cable
Constant Impedance to an Axial Mating Tolerance of 0.090”
Insertion Tool: M81969/14-06
Extraction Tool: M81969/14-06 or M81969/14-12
